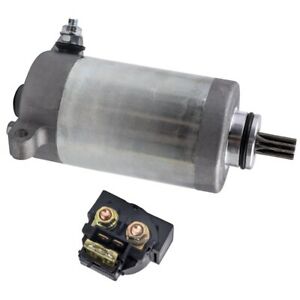

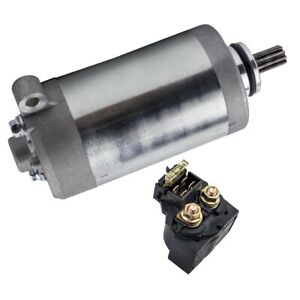

Starter & Relay Solenoid for Kawasaki Bayou 220/250 Model 1988-2011
Applications:
for Kawasaki ATV
for Kawasaki ATV Bayou 220 215cc 1988-2002
for Kawasaki ATV Bayou 250 228cc 2003-2011
Bayou 220 215cc Engine 1988-1991 KLF220 A1-A4
Bayou 220 215cc Engine 1992-1995 KLF220 A5-A8
Bayou 220 215cc Engine 1996-2002 KLF220 A9-A15
Bayou 250 228cc Engine 2003-2005 KLF250 A1-A3
Bayou 250 228cc Engine 2006-2009 KLF250 A6-A9
Bayou 250 228cc Engine 2010-2011 KLF250 AA-AB
Feature:
Unit Type: Starter
Part Type: UNIT
Voltage: 12V
Rotation: CCW
Teeth/Splines: 9
Starter Type: PMDD
Pinion/Splines OD: 12 mm / 0.472 in
Mounting Hole 1: 7.0 mm ID Unthreaded
Mounting Hole 2: 7.0 mm ID Unthreaded
for Arrowhead: SMU0052
for Kawasaki: 21163-1130, 21163-1253, 21163-1266
for Lester: 18716
for Stockers Starters: KA-104, KA-104A
for Tuckey Rocky: 49-5716
for Wai: 2-2443-MT
Solenoid: 27010-1243 27010-1283
Notice:
* Condition: 100% Brand New
* Warranty: 2 years for any manufacture defects
* Please confirm the old part number matches the number above before ordering.
* Package Includes: You will get exactly as shown as picture above
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
