Specification
Operating Instructions:
- Brand:
- SKU: SPOS20012-1
- Input voltage: 12V
- Speed: 200-10000rpm
- Working temperature: 0-40C
- Material: Plastic
- Color: Red
- Pistol Grip Handle: 30*21*5.5cm

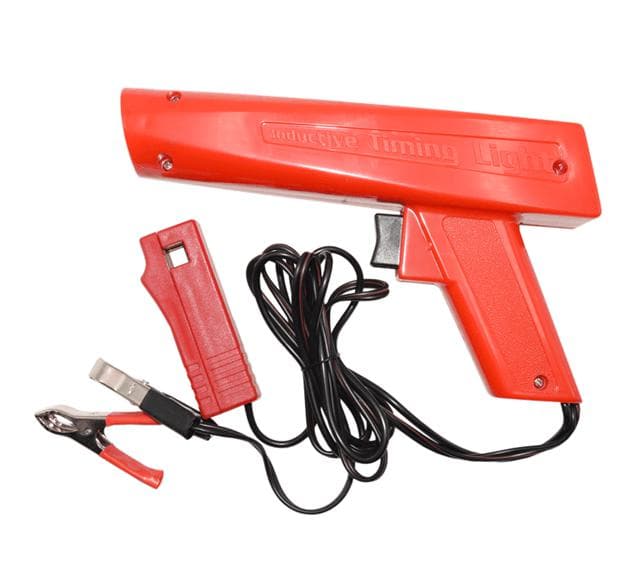

- Ignition Timing Light: Design to re-timing your car`s ignition to get the best performance that you can. Suitable for car, vehicle motorcycle, marine,all two-stroke and four-stroke gasoline engines, easily operate on 12V ignition systems.
- Safe Professional Engine Timing Light: Solid-state burnout-proof polarity with automotive reverse, it is polarity and overload protection. It`s sliding clamp-on inductive pick-up, for easy and safe hookup.
- Pistol Grip Design: Handle pistol-type design conforms to the engineering design, the button is comfortable, feels good, facilitates the operation.
- Sensor Clips: The sensor clip is red and black to distinguish positive and negative poles, easy to use, and more secure. And the color of the wire is also different to prevent the glue sleeve of the clip to come off and difficult to distinguish.
Operating Instructions:
- 1. Clamp the inductive pick-up around the number one (1) spark plug wire. Make sure the arrow on it is facing towards the spark plug.
- Do not allow the inductive pick-up to touch the exhaust manifold or surrounding parts as these areas become extremely hot and will damage the inductive pick-up.
- 2. Connect the RED clamp to the positive (+) battery terminal.
- 3. Connect the BLACK clamp to a secure engine ground such as the alternator bracket or the engine block. For safety reasons, do not use the negative (-) battery terminal or fuel system components as a ground connection point.
- 1 x Inductive Timing Light Gun
- Before adjusting the timing, the "dwell angle" or "gap" should be adjusted on vehicles fitted with contact breaker points.
Product Disclaimer: This product is not designed to meet any emissions/noise standards and is not for street or highway use. This product is not certified and may not be legal for use on emissions-controlled vehicles in any country/jurisdiction. Any other use, including recreational off-road use, may be in violation of local, state, and federal laws. Carrot Top Tuning does not implicitly or explicitly confirm the legality of using any products it sells on public roads; that is entirely the responsibility of the customer. Carrot Top Tuning will not ship CARB restricted products into CARB restricted areas under any circumstances. ***OFF-ROAD USE ONLY***
