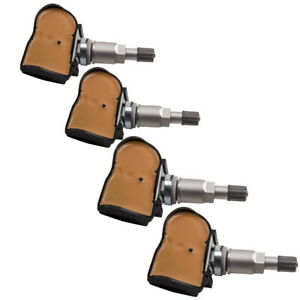

New 4pcs Tire Pressure Sensor TPMS For Chrysler For Dodge
Specification
Color Black
Warranty 2 Years
Condition: New
Package Include: 4 x Tire Pressure Sensors
Reference Part Number :68078768AB 56053031 68001698AA 68001698AC 68078768AA 56029527AA
Application:
For Chrysler 200 2012-2013
For Chrysler 300 2008
For Chrysler Town & Country 2008-2012
For Chrysler Sebring 2008-2009
For Dodge Journey 2009-2017
For Dodge Avenger 2012-2013
For Dodge Caliber 2011-2012
For Dodge Grand Caravan 2008-2012
For Dodge Charger 2008
For Dodge Magnum 2008
Feature
* 100% brand new 4 Pcs Tire Pressure Sensor.
* Made of high quality material, ensuring high durability for long time use.
* Professional manufacturing, high accuracy and reliability.
* High level of accuracy and sensitivity, enhance safety of your vehicle.
* Fit both the front wheels and the rear wheels, left and right sides.
* Please calibrate your Sensor after install
* Please confirm your original part number or oem numbr can matche up with one of the part numbers above
* Professional installation is highly recommended (No Instruction Included)
* For whatever we can help,please feel free to contact us via ebay message. We are always here for you.
Note
1. Tire pressure sensors maybe require programming or "re-learning" before they will become activated or recognized by the vehicle upon installation. Please check your owner's manual for details on this process specific to your vehicle.
2. Installation of TPMS is recommended to be performed only by trained professionals.
3. The sensors were not coming with any nuts or bolts.
Installation Process
1. Loosen the tire: Remove the valve cap and core and deflate the tire.
2. Dismount the tire: Clamp the tire onto the tire changer, and adjust the valve at 1 o’clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to discount the head.
3. Dismount the sensor: With a screwdriver remove the fastening screw and sensor from the Valve stem, then loosen the nut and remove the valve.
4. Mount sensor and valve: Slide the valve stem through the valve hole of the rim. Tighten the screw-nut with 4.0 Nm with the help of the positioning pin. Assemble the sensor body against the rim and tighten the screw.
5. Mount the tire: Place the tire on the rim, making sure that the valve faces the separation head at an angle of 180 degrees. Mount the tire over the rim.
