_Engine Code: K24Y2,K24Z1,K24Z2,K24Z3,K24Z7 2.4L 144Cu. In. l4 GAS DOHC
Naturally Aspirated_
_Package Includes:_

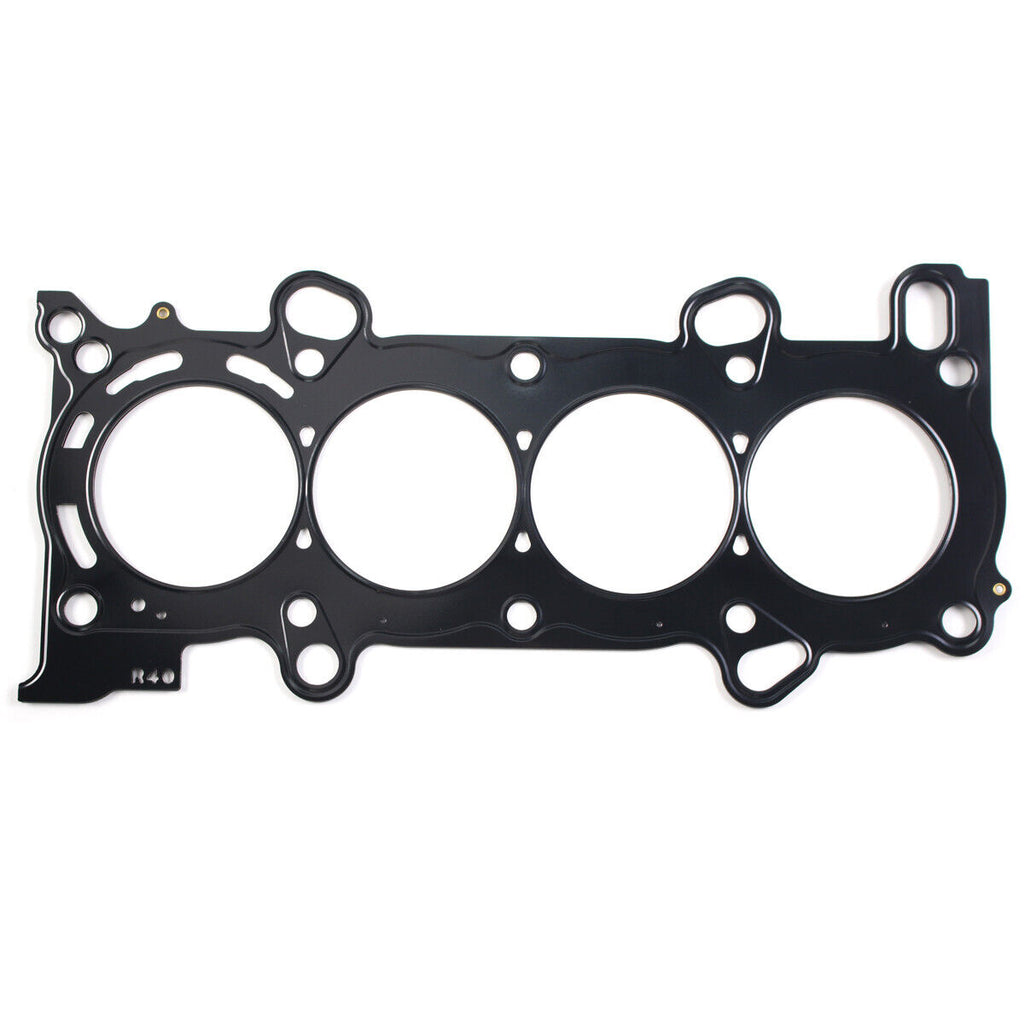

1PCS Multiple Layers Steel (MLS) Cylinder Head Gasket
_ Application :_
08-13 Honda Accord 2.4L 144Cu. In. l4 GAS DOHC Naturally Aspirated
12-15 Honda Civic 2.4L 144Cu. In. l4 GAS DOHC Naturally Aspirated
10-14 Honda CR-V 2.4L 144Cu. In. l4 GAS DOHC Naturally Aspirated
12-15 Honda Crosstour 2.4L 144Cu. In. l4 GAS DOHC Naturally Aspirated
13-15 Acura ILX 2.4L 144Cu. In. l4 GAS DOHC Naturally Aspirated
09-13 Acura TSX 2.4L 144Cu. In. l4 GAS DOHC Naturally Aspirated
_ Features:_
1: Half Beads - Provide a two-line compression seal along the coolant and
engine oil passages, along bolt holes and outer gasket edge.
2: Elastomer Coating - Fills out roughness in the materials to eliminate
micro-leaks.
3: Center (Carrier) Layer - Adapts the gasket thickness to the installation
conditions.
4: Combustion Chamber Perimeter - Generates three-line compression around the
permieter of the combustion chamber to allow it to cope with high pressures.
5: Segmented Stopper in Functional Layer - Pre-stressed to eliminate sealing
gaps and prevent excessive deformation.
