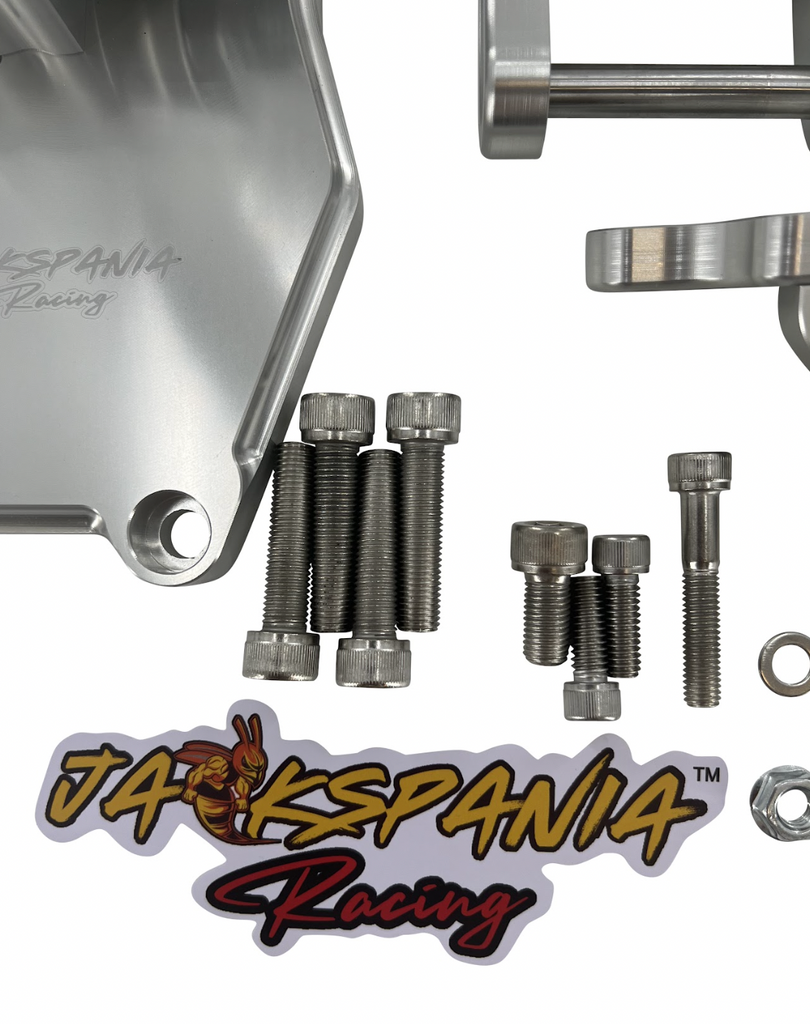

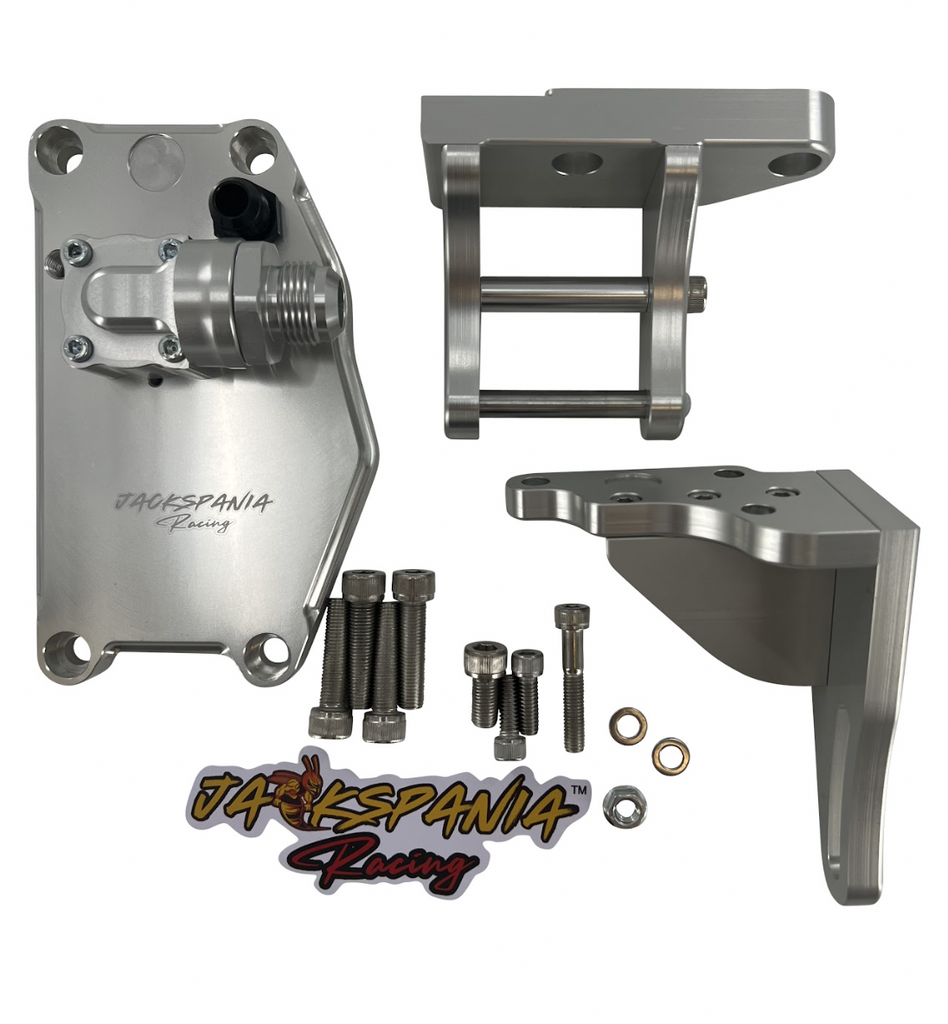

K20 K24 K Series Electric Water Plate Kit With Alternator Brackets Fittings

  • Sale
  • Regular price $199.95
Shipping calculated at checkout.


The water plate kit is designed for race use only. It is not recommended on street cars or stock/mild builds. Since the water plate is full flow at all times it can over-cool cars that are not under WOT most of the time. It does not have a thermostat nor regulated flow. Cannot be used with AC, Power Steering, Supercharger, or any other belt driven accessories other than the alternator.
  • Made of billet aluminum.

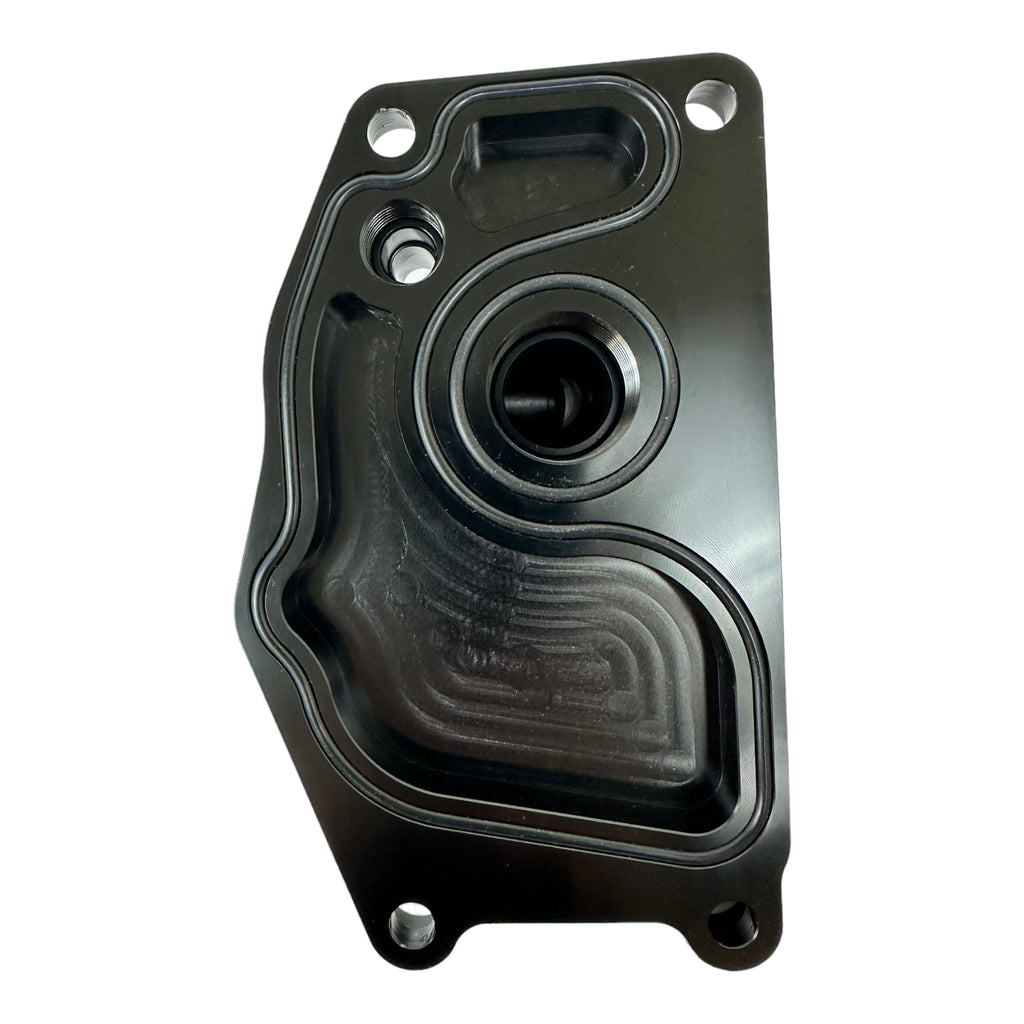

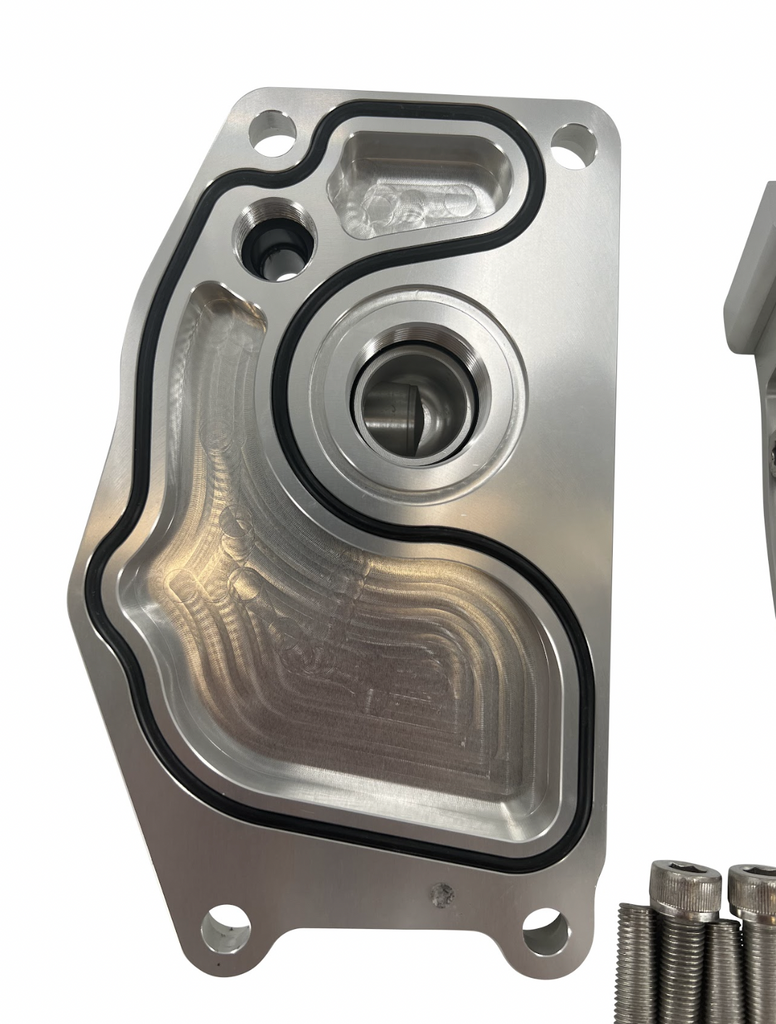

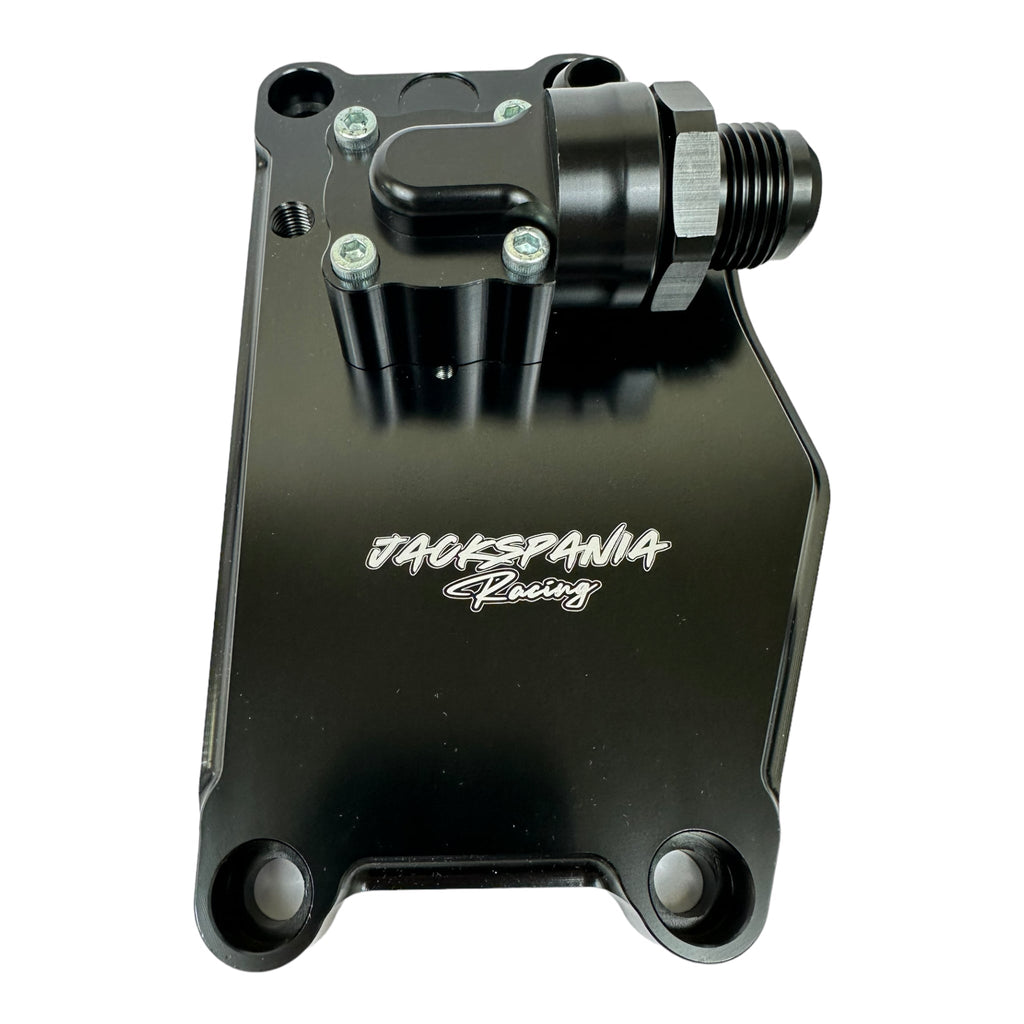

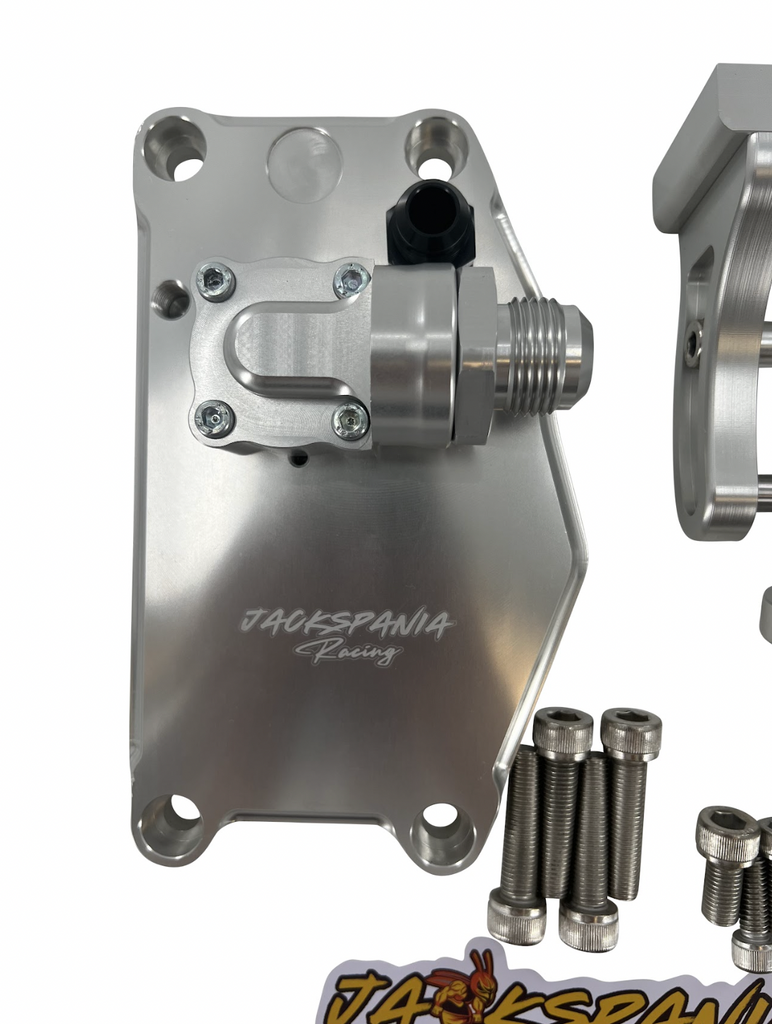

  • Replaces the huge oem water passage with a lightweight & low profile block-off plate

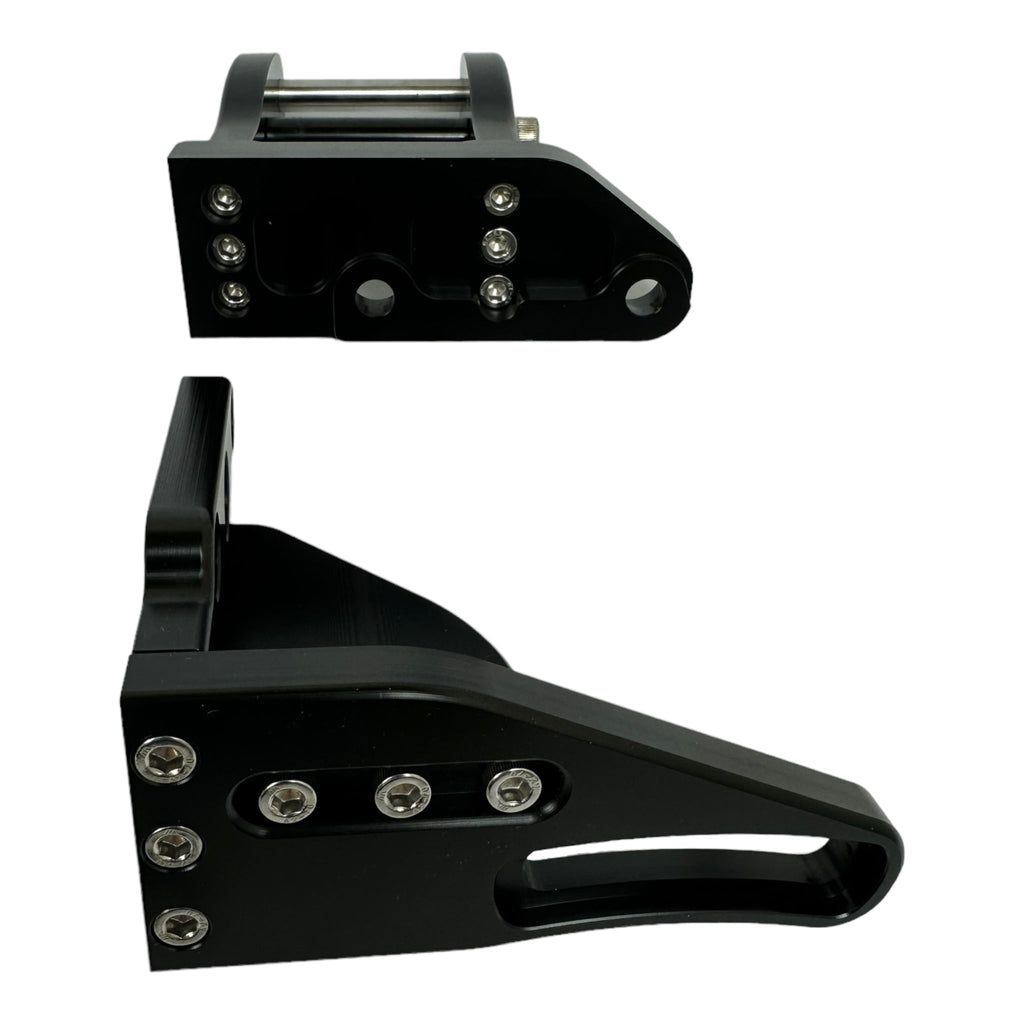

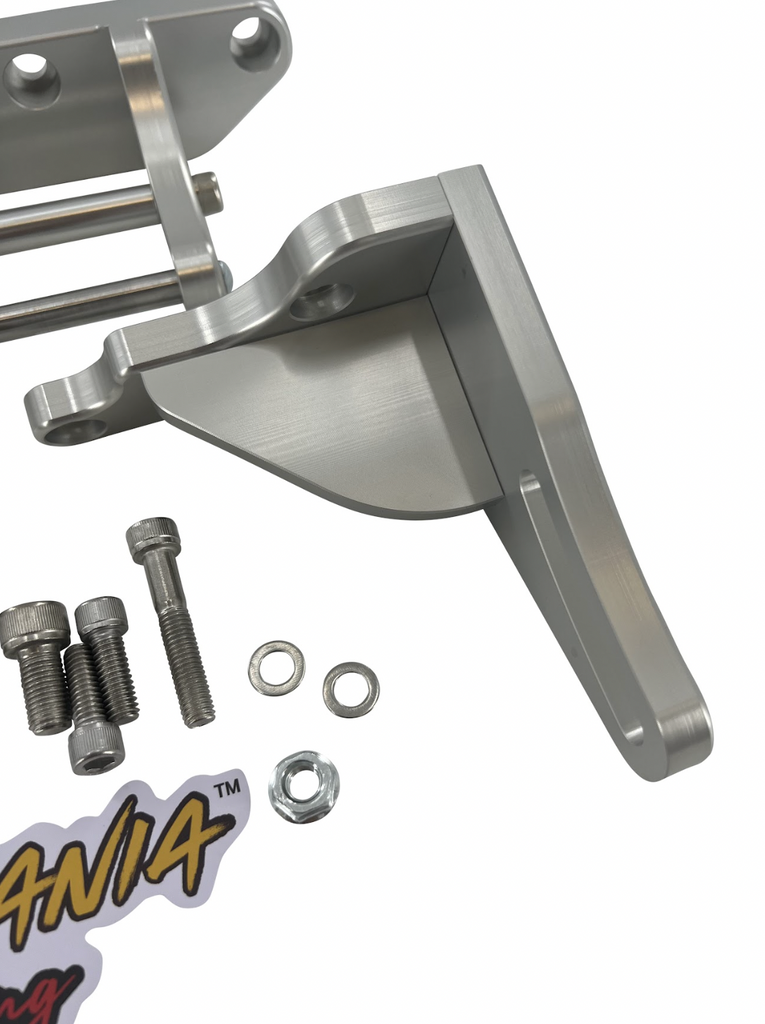

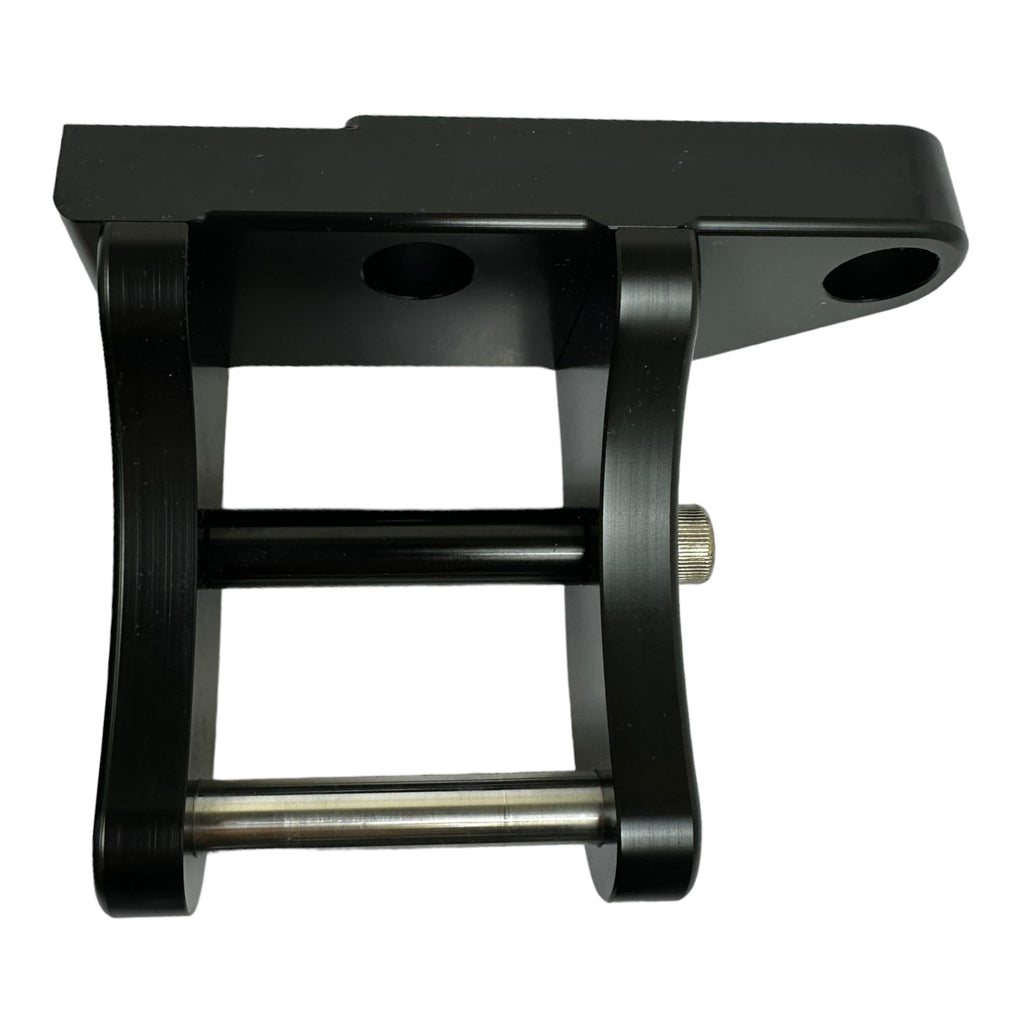

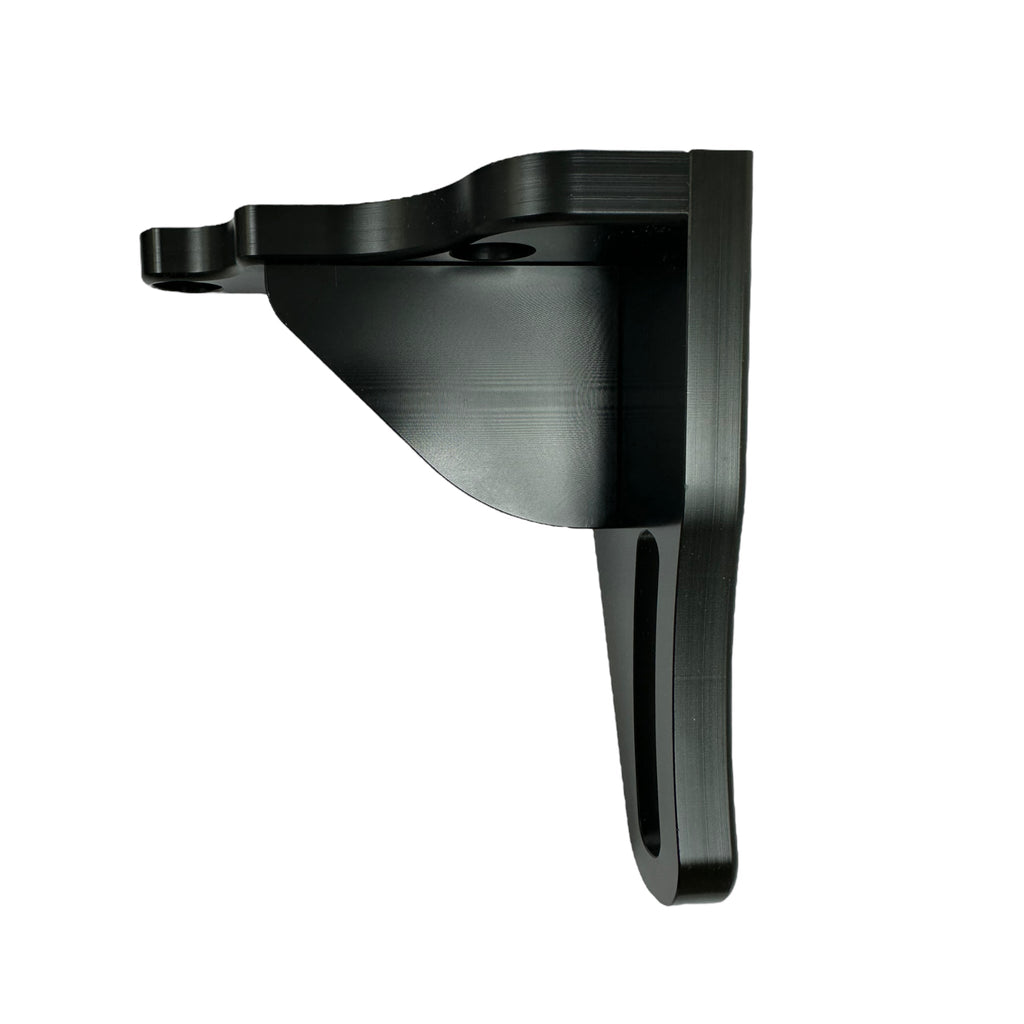

  • High strength, multi-piece design ensures alternator is fully secured.
  • No alternator pulley swap required.
  • Designed to fit all K Series engines except K24Z, K24Y, & K20C Series engines.
  • Designed to save weight, reduce drag and tuck the OEM alternator closer to the block.
  • Removes oem water pump, auto tensioner, P/S, A/C and EP3 pulley
  • Designed to be used with the lighter D/B series alternators

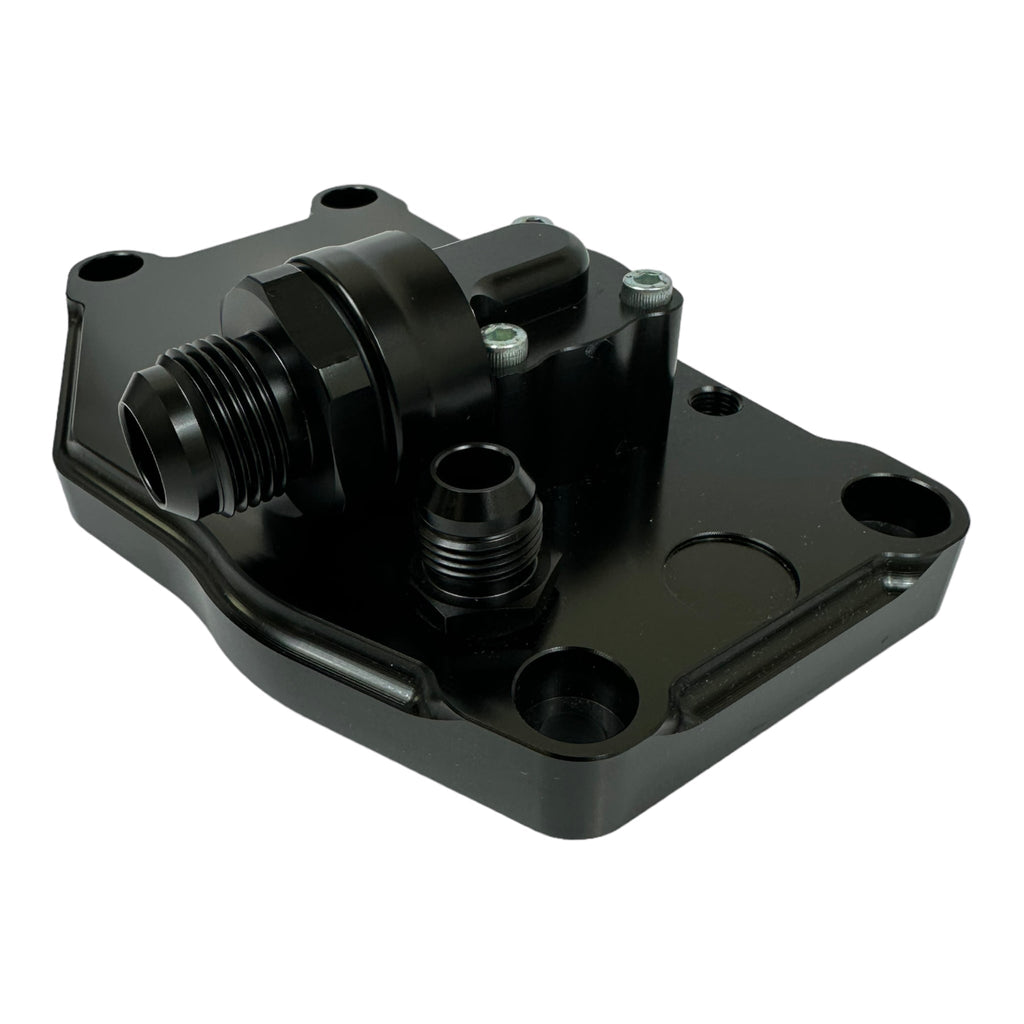

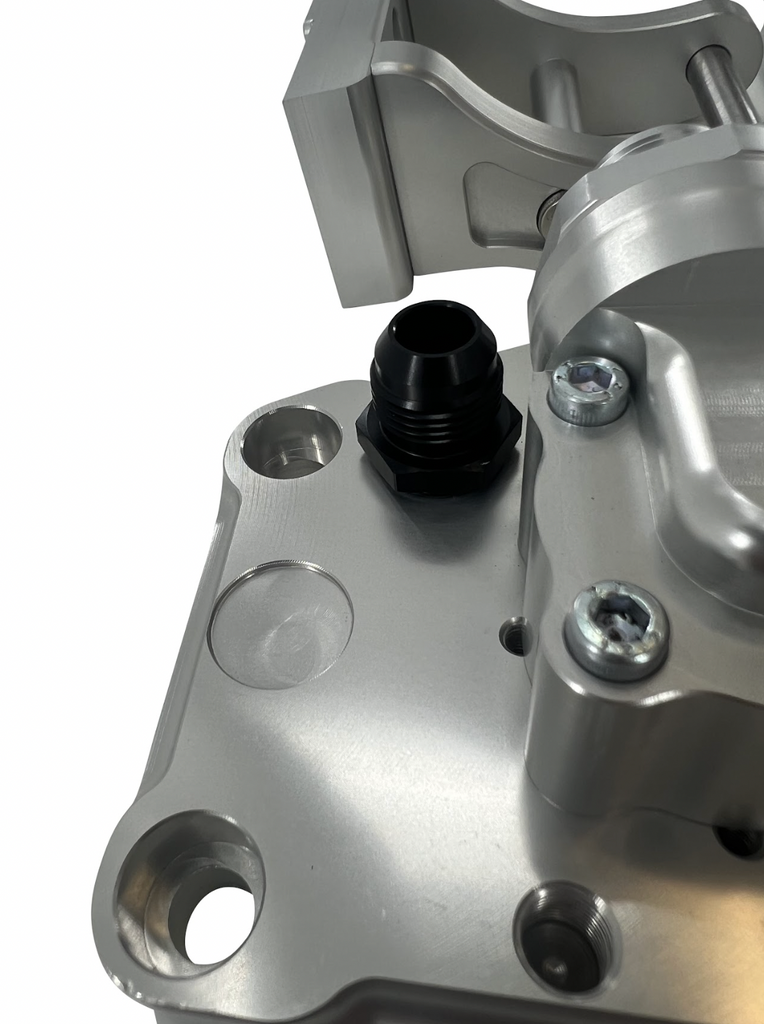

  • Large coolant port is tapped for -16AN thread
  • Smaller Breather port is tapped for -8AN thread
  • Reduces parasitic drag to in turn increase the overall performance of your race engine.
  • This part is intended for use on true high performance race car builds only!
