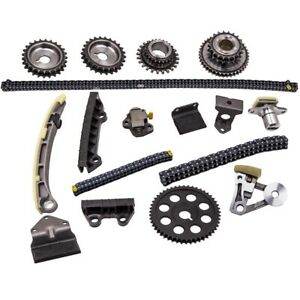

Complete Timing Chain Kit For SUZUKI GRAND VITARA 2.5L "H25A" 99 - 05

For CHEVROLET TRACKER 2.5L 2500CC V6 DOHC 24V "H25A" 01 - 04

For SUZUKI GRAND VITARA 2.5L 2500CC V6 DOHC 24V "H25A" 99 - 05

For SUZUKI GRAND VITARA 2.7L 2737CC V6 DOHC 24V "H27A"01 - 01

For SUZUKI VITARA 2.5L 2500CC V6 DOHC 24V "H25A" 04 - 04

For SUZUKI XL-7 2.7L 2700CC V6 DOHC 24V "H27A" 02 - 04

For SUZUKI XL-7 2.7L 2737CC V6 DOHC 24V "H27A" 05 - 06

1* TIMING CHAIN main ( crank to idler & cam)

1* TIMING CHAIN upper (right head cam to cam)

1* TIMING CHAIN upper (left cam to cam to idler)

1* TENSIONER lower

1* TENSIONER upper (RIGHT)

1* TENSIONER upper (LEFT)

2* CAM SPROCKETS exhaust (1-left & 1-right)

1* CAM SPROCKET intake (left head 24 teeth)

1* CAM SPROCKET intake (right head 48 teeth)

1* IDLER SPROCKET (upper 20 & 40 teeth)

1* GUIDE RAIL (LOWER RIGHT-INNER)

1* GUIDE RAIL (LOWER RIGHT-OUTER)

1* GUIDE RAIL (LOWER LEFT)

1* GUIDE RAIL (UPPER RIGHT CAM)

2* GUIDE RAILS (UPPER LEFT CAM)

for 16100-85FA2 TK523

Notice

* No instruction included; Professional installation & alignment suggested.

* Please check our store for other auto parts you may be interested in.

* Please feel free to contact us for whatever we can help
