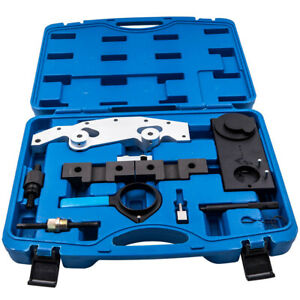

Package Includes:
1. Alignment Jig: To set valve timing on engine with double Vanos. (ref.#116150)
2. Sprocket Assembly Jig: for preassembling secondary chain sprockets with chain on camshafts. (ref.#116180)
3. Rigid Chain Tensioner: to tension primary chain. (ref.#114220)
4. Chain Tensioner Lock Pin: Locks chain tensioner during timing. (ref.#113292)
5. VANOS Compressed Air Connection: to pressurize the single and double Vanos unit when checking or removing and replacing. (ref.#113450)
Applicable: for BMW 6 cylinder engine: M52TU (1998-2000), M54 (2001-2004), & M56 (2003 to present).
for BMW 4 & 6 Cylinder Camshaft Alignment / Timing Tools. Include:
6. Camshaft Locking Fixture: Aligns and holds the camshaft in position when assembling cylinder head and replacing timing chain.(ref.#113240)
Engines: M42, M44, M50, M52, M52TU, M54, M56, S50US, S52US.
7. Top Dead Center Pin: to lock the flywheel at Top Dead Center when removing or replacing the camshafts or VANOS assemblies. (ref.#112300)
Engines: M42, M43, M44, M50, M52, M52TU, M54, M56, M60, M62, M70, M73, S50B30, S50B32, S54, S62.
8. VANOS Turning Wrench: to adjust VANOS position on single VANOS engines when removing or installing. (ref.#115490)
Engines: M50, M52, S50US, S52US.
Application:
| M52TUB25 | M54B25 |
| * 1997-2001 E46 323i/323Ci/323ti (M52T) | * 2001-2002 E36/7 Z3 2.5i |
| * 1998-2001 E39 523i (M52TU) | * 2001-2005 E46 325i/325xi |
| * 1998-2001 E36/7 Z3 (M52TU) | * 2001-2006 E46 325Ci |
| * 2001-2004 E46 325ti | |
| M52TUB28 | * 2001-2004 E39 525i |
| * 1997-2001 E46 328i/328Ci (M52TU) | * 2003-2004 E60/E61 525i/525xi |
| * 1997-2001 E36/7 Z3 2.8 (M52B28/Z3) | * 2004-2006 E83 X3 2.5i |
| * 1998-2001 E39 528i (M52TU) | * 2004-2006 E85 Z4 2.5i |
| * 1998-2001 E38 728i (M52TU) | |
| M54B30 | |
| M54B22 | * 2001-2005 E46 330i/330xi |
| * 2001-2003 E46 320i/320Ci | * 2001-2006 E46 330Ci |
| * 2001-2003 E39 520i | * 2001-2003 E39 530i |
| * 2001-2002 E36 Z3 2.2i | * 2001-2002 E36 Z3 3.0i |
| * 2003-2005 E85 Z4 2.2i | * 2003-2005 for BMW E60 530i |
| * 2003-2005 E60/E61 520i | * 2003-2006 E85 Z4 3.0i |
| * 2004-2006 E83 X3 3.0i | |
| * 2001-2006 E53 X5 3.0i |
Please feel free to contact us for whatever we can help.
Box Color: The color of the box is random
