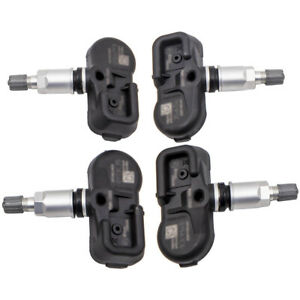

4Pcs Tire Pressure Sensor TPMS For Lexus IS250 2014-2015
Specification
Color Black
Warranty 2 Years
Condition: New
Frequency: 315 MHz
Package Include:
4 x Tire Pressure Monitoring Sensors
Part Number :
42607-06020; 42607-30060; 42607-52020 PMVC010 550-0105 28103-CA000
Application:
For Scion iM 2016
For Lexus IS200t 2016
For Lexus IS250 2014-2015
For Lexus IS300 2016-2017
For Lexus IS350 2014-2017
For Lexus ES300h 2013-2017
For Lexus ES350 2013-2017
For Lexus NX200t 2015-2017
For Lexus NX300h 2015-2017
For Lexus GS F 2016
For Lexus GS200t 2016
For Lexus GS350 2013-2017
For Lexus GS450h 2013-2017
For Lexus LS460 2013-2016
For Lexus LS600h 2013-2016
For Lexus RC F 2015-2017
For Lexus RC300 2016-2017
For Lexus RC350 2015-2017
For Toyota Avalon 2013-2016
For Toyota Camry 2012-2017
For Toyota Corolla 2014-2016
For Toyota Corolla iM 2017
For Toyota Yaris 2012-2014
For Toyota Rav-4 2013-2017
For Toyota Highlander 2014-2017
For Toyota Prius 2016-2017
For Toyota Prius C 2012-2017
For Toyota Prius Prime 2017
For Toyota Prius V 2017
Feature
* 100% brand new 4 Pcs Tire Pressure Sensor.
* Made of high quality material, ensuring high durability for long time use.
* Professional manufacturing, high accuracy and reliability.
* High level of accuracy and sensitivity, enhance safety of your vehicle.
* Fit both the front wheels and the rear wheels, left and right sides.
* Please calibrate your Sensor after install
* Please confirm your original part number or oem numbr can matche up with one of the part numbers above
* Professional installation is highly recommended (No Instruction Included)
* For whatever we can help,please feel free to contact us via ebay message. We are always here for you.
Installation Process
1. Loosen the tire: Remove the valve cap and core and deflate the tire.
2. Dismount the tire: Clamp the tire onto the tire changer, and adjust the valve at 1 o’clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to discount the head.
3. Dismount the sensor: With a screwdriver remove the fastening screw and sensor from the Valve stem, then loosen the nut and remove the valve.
4. Mount sensor and valve: Slide the valve stem through the valve hole of the rim. Tighten the screw-nut with 4.0 Nm with the help of the positioning pin. Assemble the sensor body against the rim and tighten the screw.
5. Mount the tire: Place the tire on the rim, making sure that the valve faces the separation head at an angle of 180 degrees. Mount the tire over the rim.
