New 4pcs Tire Pressure Sensor TPMS For Dodge Ram 1500 DT Models
Specification
Color Black
Warranty 2 Years
Condition: New
Frequency : 433MHz

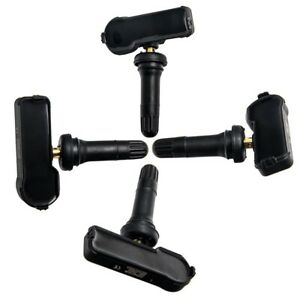

Package Include: 4 x Tire Pressure Sensors
Reference Part Number : 68293199AA 68293199 AA-AB 68293199AB 68249197-AA
Application: For Dodge For Ram 1500 TRUCKS (DT Models) 2019-2020
Feature
* 100% brand new 4 Pcs Tire Pressure Sensor.
* Made of high quality material, ensuring high durability for long time use.
* Professional manufacturing, high accuracy and reliability.
* High level of accuracy and sensitivity, enhance safety of your vehicle.
* Fit both the front wheels and the rear wheels, left and right sides.
* Please calibrate your Sensor after install
* Please confirm your original part number or oem numbr can matche up with one of the part numbers above
* Professional installation is highly recommended (No Instruction Included)
* For whatever we can help,please feel free to contact us via ebay message. We are always here for you.
Note
1. Tire pressure sensors maybe require programming or "re-learning" before they will become activated or recognized by the vehicle upon installation. Please check your owner's manual for details on this process specific to your vehicle.
2. Installation of TPMS is recommended to be performed only by trained professionals.
3. The sensors were not coming with any nuts or bolts.
Installation Process
1. Loosen the tire: Remove the valve cap and core and deflate the tire.
2. Dismount the tire: Clamp the tire onto the tire changer, and adjust the valve at 1 o’clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to discount the head.
3. Dismount the sensor: With a screwdriver remove the fastening screw and sensor from the Valve stem, then loosen the nut and remove the valve.
4. Mount sensor and valve: Slide the valve stem through the valve hole of the rim. Tighten the screw-nut with 4.0 Nm with the help of the positioning pin. Assemble the sensor body against the rim and tighten the screw.
5. Mount the tire: Place the tire on the rim, making sure that the valve faces the separation head at an angle of 180 degrees. Mount the tire over the rim.
