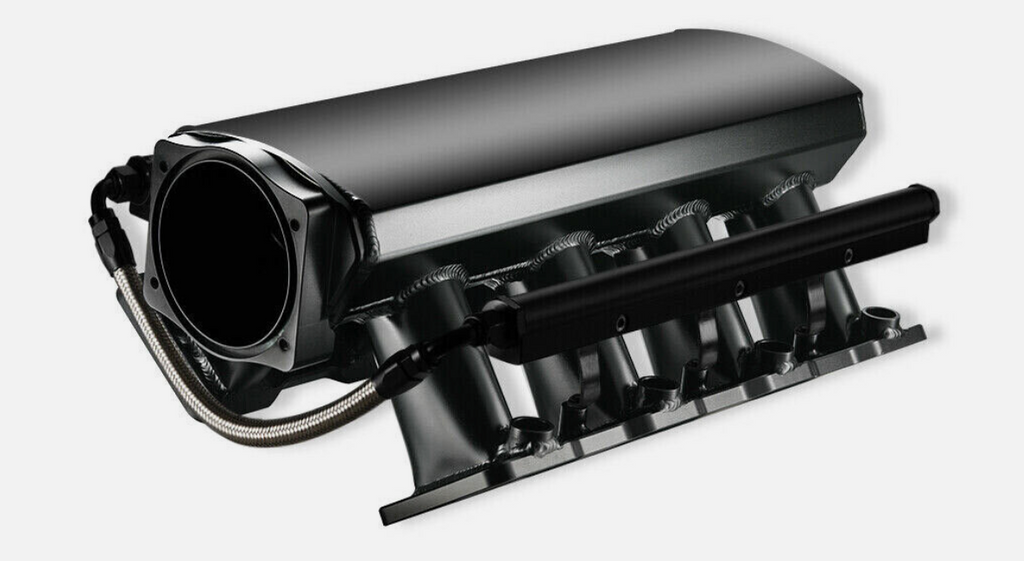

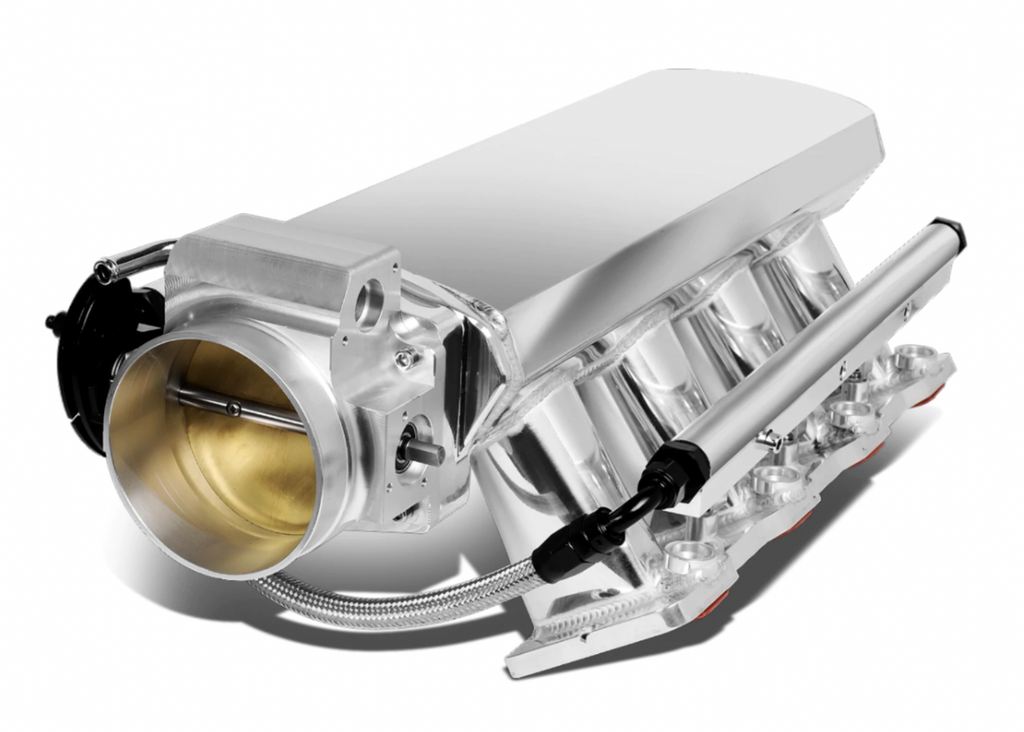

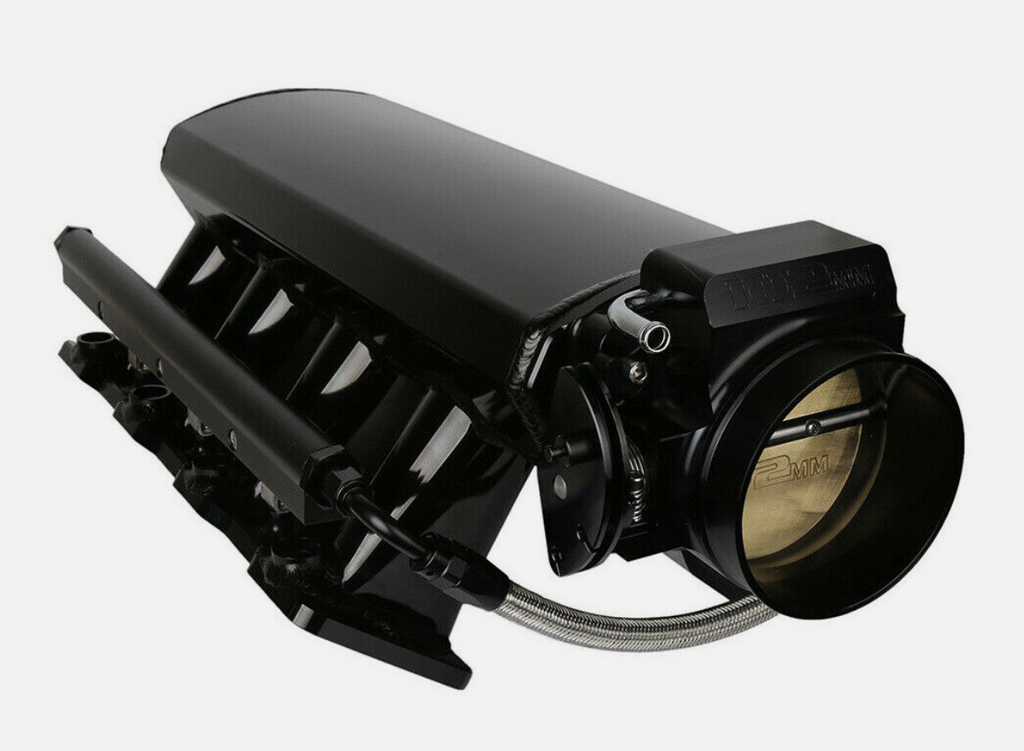

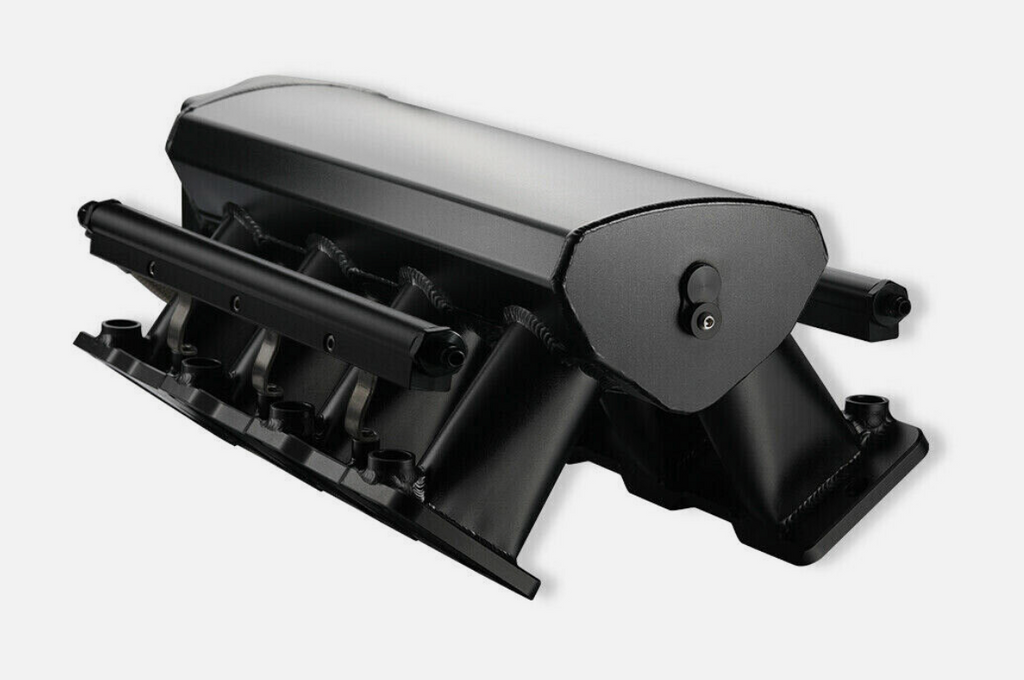

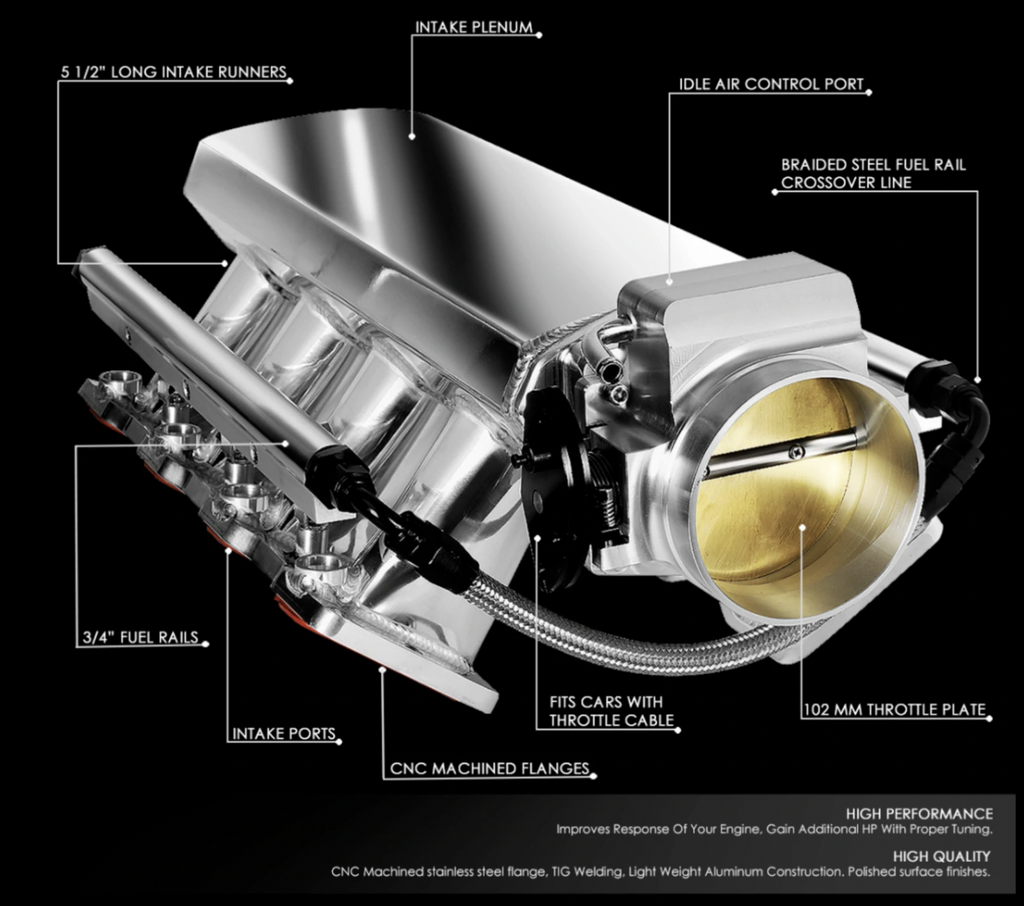

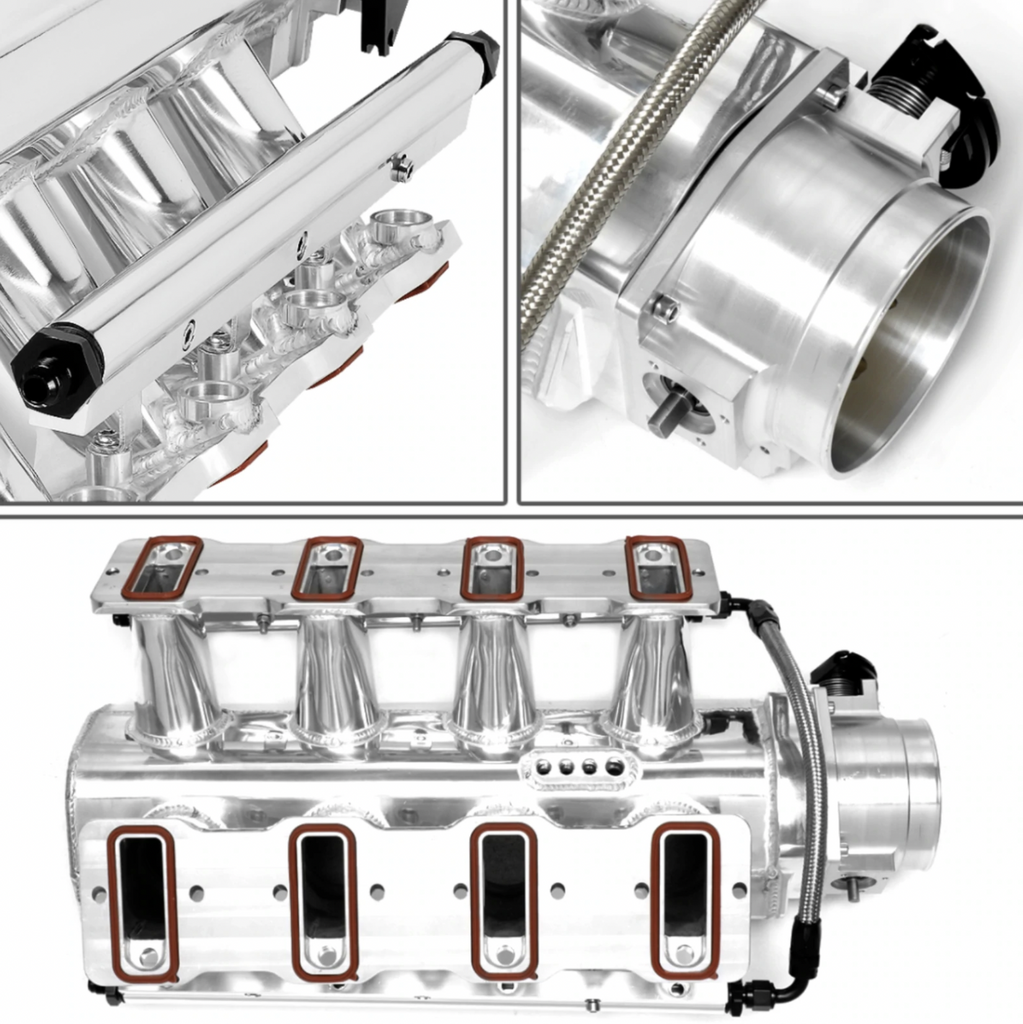

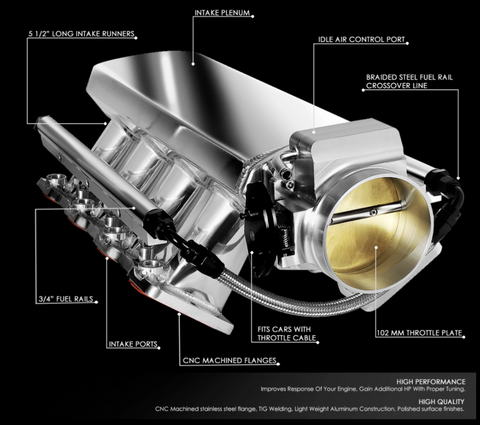

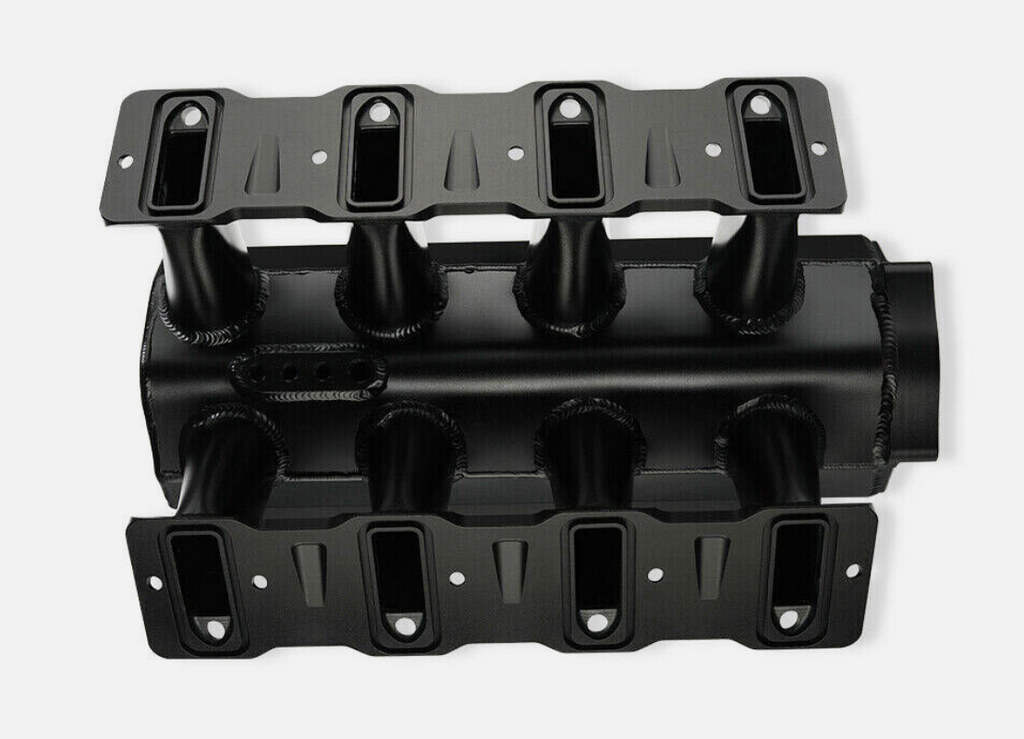

102mm LS LS1 LS2 LS6 LSX Intake Manifold Throttle Body Sheet Metal Fabricated
102mm LS LS1 LS2 LS6 LSX Intake Manifold Throttle Body Sheet Metal Fabricated
- Fits LS1 LS2 LS6 4.8L, 5.3L 6.0L engine heads.
- Made of high quality T6061 Aluminum Sheet with 3mm thickness
- Able to handle 30lbs of boost and suitable for boosted and vacuum
- Precision CNC machines head flanges
- TIG welded by professional craftsmen
- Specification :
- Manifold Height : 9inches (Approx. 5inches higher than stock)
- Material : 3mm thick T6061 Aluminum Sheet
- Throttle body Openning : 102mm
- Intake Overall Length : 20inches
- Vacuum ports : 3
- Finishes : polished
- Application
- LS1 LS2 LS6 (6.0L 5.6L 5.3L 4.8L)
- Chevrolet Small Block V8 GEN. III/IV(LS-Based)
- 4.8L / 293 CI (LR4)
- 5.3L / 325 CI (L33,L59,LM4,LM7)
- 5.7L / 346 CI(LS1,LS6)
- 6.0L / 364 CI(LQ4,LQ9,LS2)
- Fits: LS based engines with Cathedral Port Heads shape
- Original LS1/LS2/LS6 Engine applications:
- 1997-2004 Chevrolet Corvette
- 1998-2002 Pontiac Firebird Formula, Trans AM
- 2001-2004 Corvette Z06
- 2004-2005 Cadillac CTS V-series
- 2005-2007 Chevrolet Corvette
- 2005-2006 Chevrolet SSR
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS V-Series
- 2005-2006 Pontiac GTO
- 2008-2009 Saab 9-7X Aero

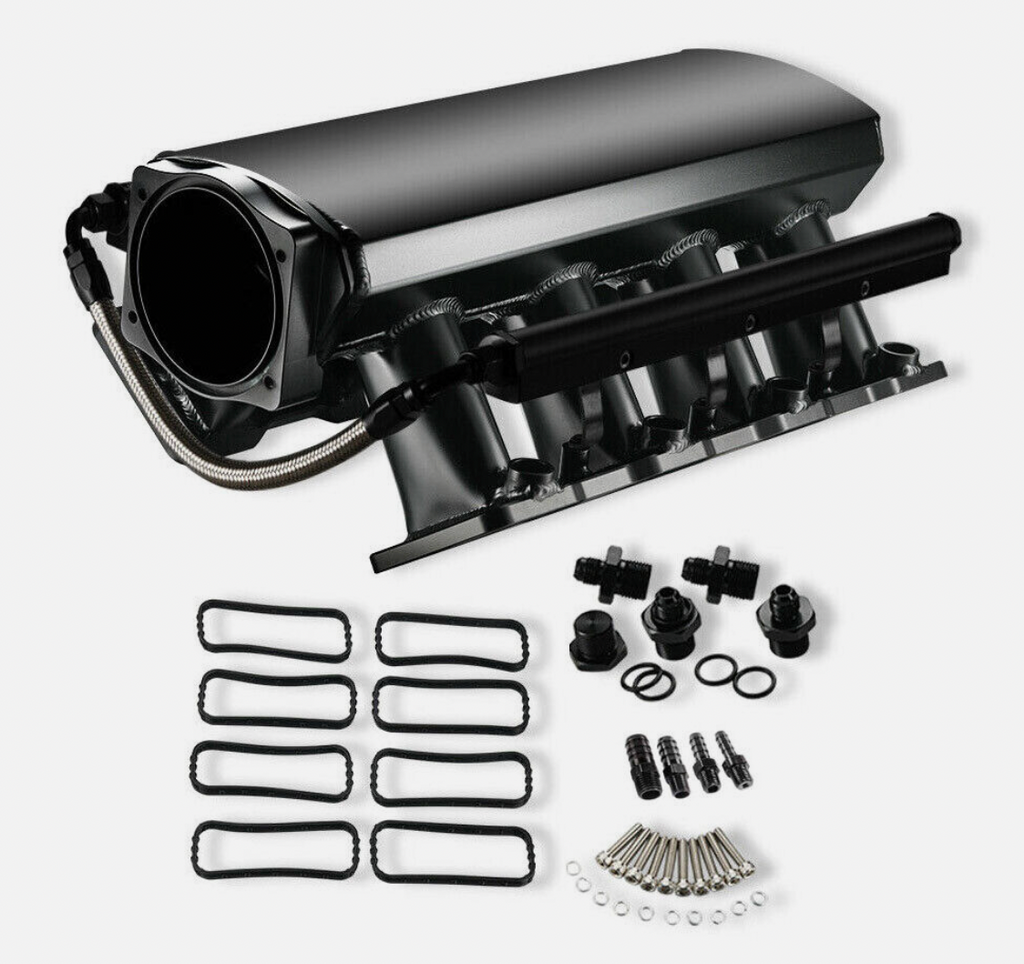

- Includes 2x fuel rails, fuel crossover line, gaskets and other fitting hardware.

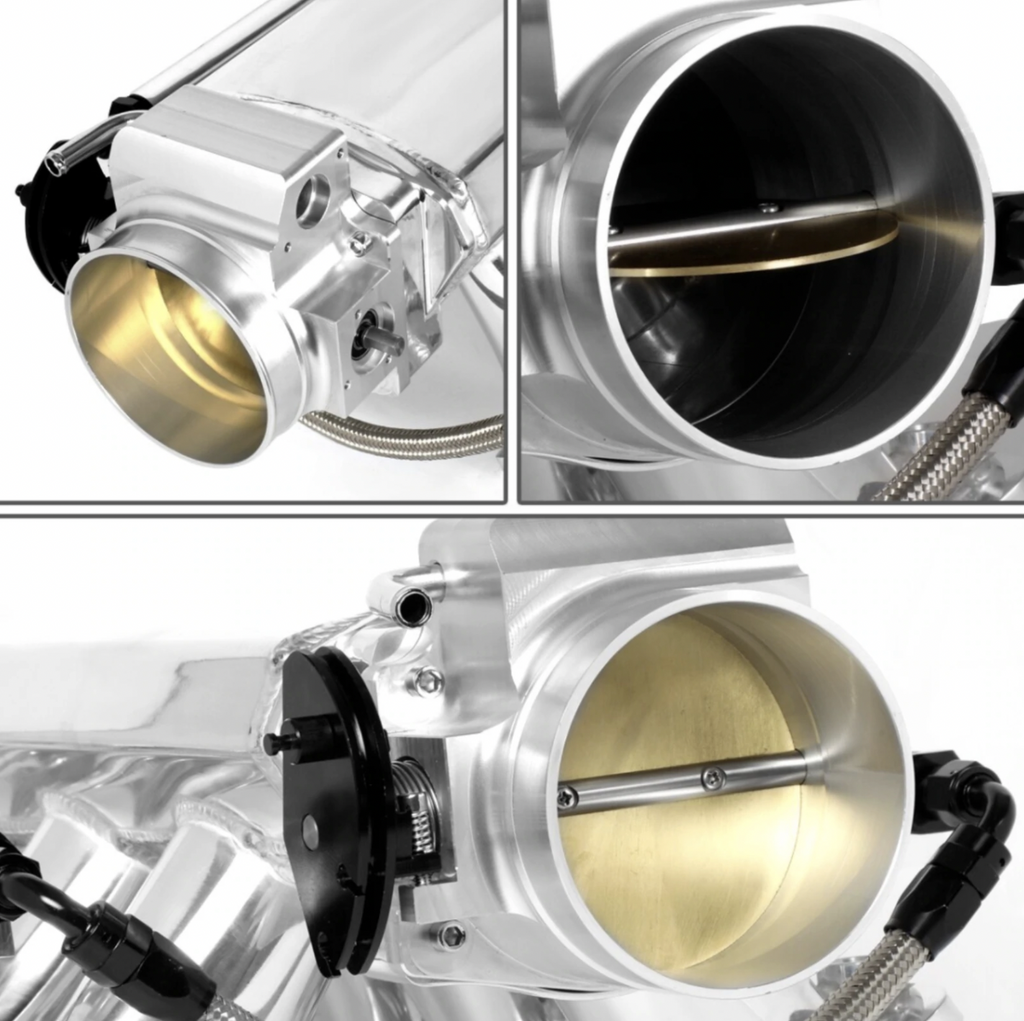

- Includes Billet Aluminum 102mm Throttle Body
- This will fit cathedral port LS1/LS2/LS6 heads
- Please note that aftermarket intakes are required to reroute vacuum lines and minor adjustments on certain applications.
